PROJECT

Teak deck on Nautor's Swan 40

New teak deck

Location: Ancora Marina, Baltic Sea

We have equipped this Swan 40 with a new teak deck.

Your yacht needs a new teak deck?

REQUEST A QUOTE

Swan 40 teak decking project pictures

click to view

Your yacht needs a new teak deck?

REQUEST A QUOTE

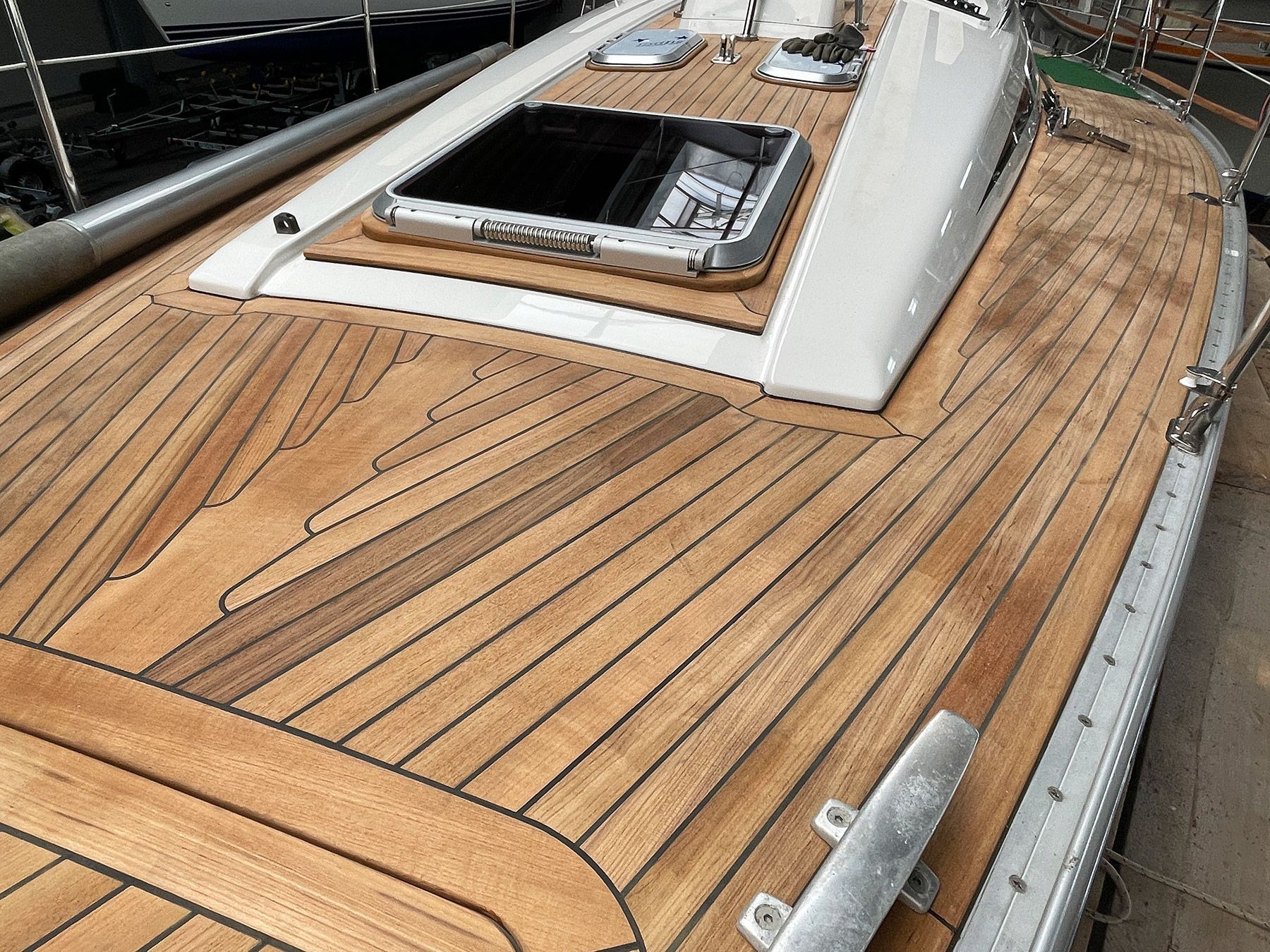

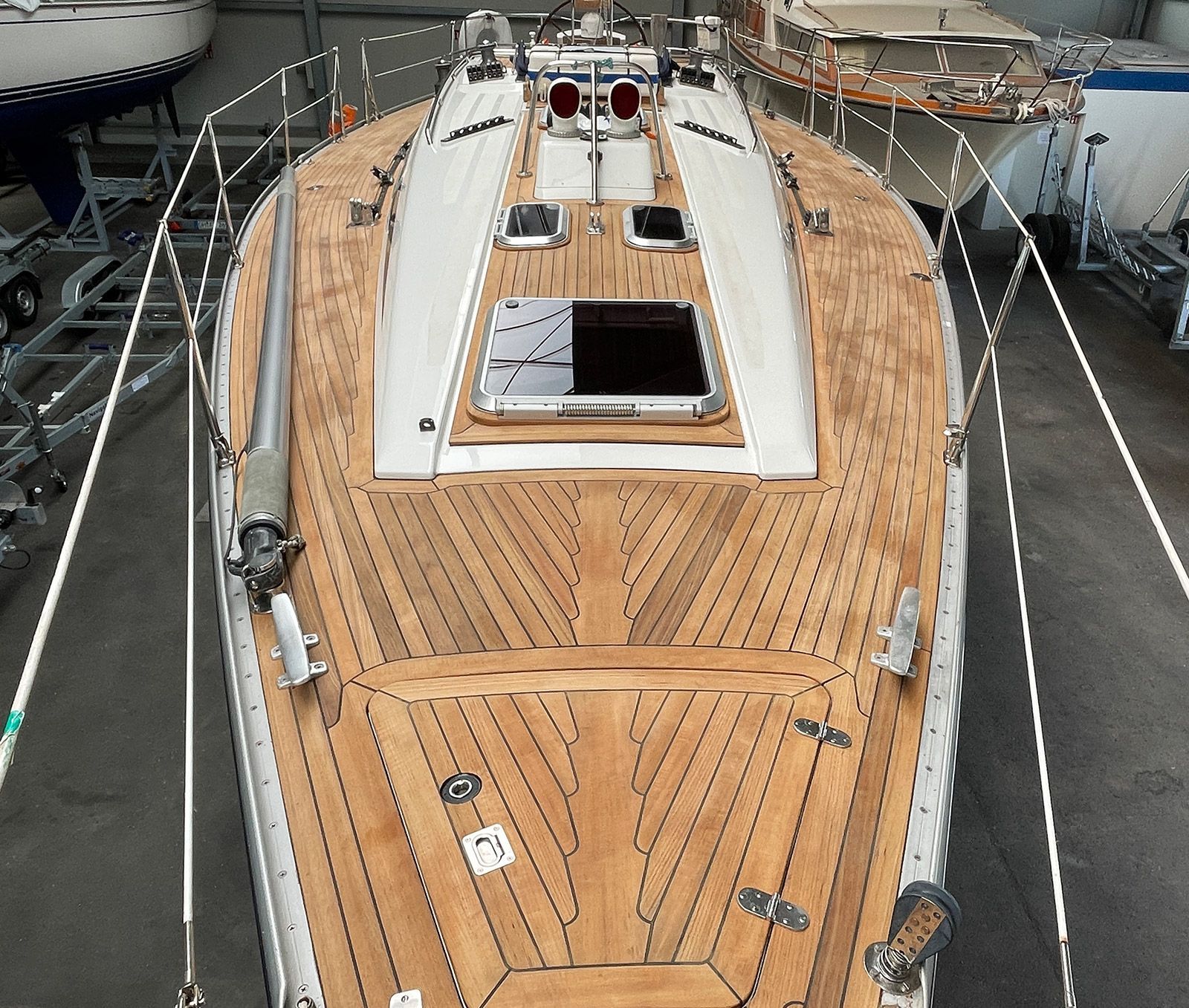

The new teak deck on the Swan 40
Button
The new teak deck on the Swan 40
Button
Button
Button
New teak deck in the cockpit area
Button
Button
Button
Button
In the course of a teak deck renewal, all deck fittings sitting on the teak deck are dismantled.
Button
The existing teak deck is removed layer by layer and the substrate is prepared. In addition to sealing all old screw holes with epoxy hard, the sandwich core is checked for water penetration with a moisture meter.
Button
The GRP deck of the Swan 40 is prepared for vacuum bonding of the new teak deck.
Button

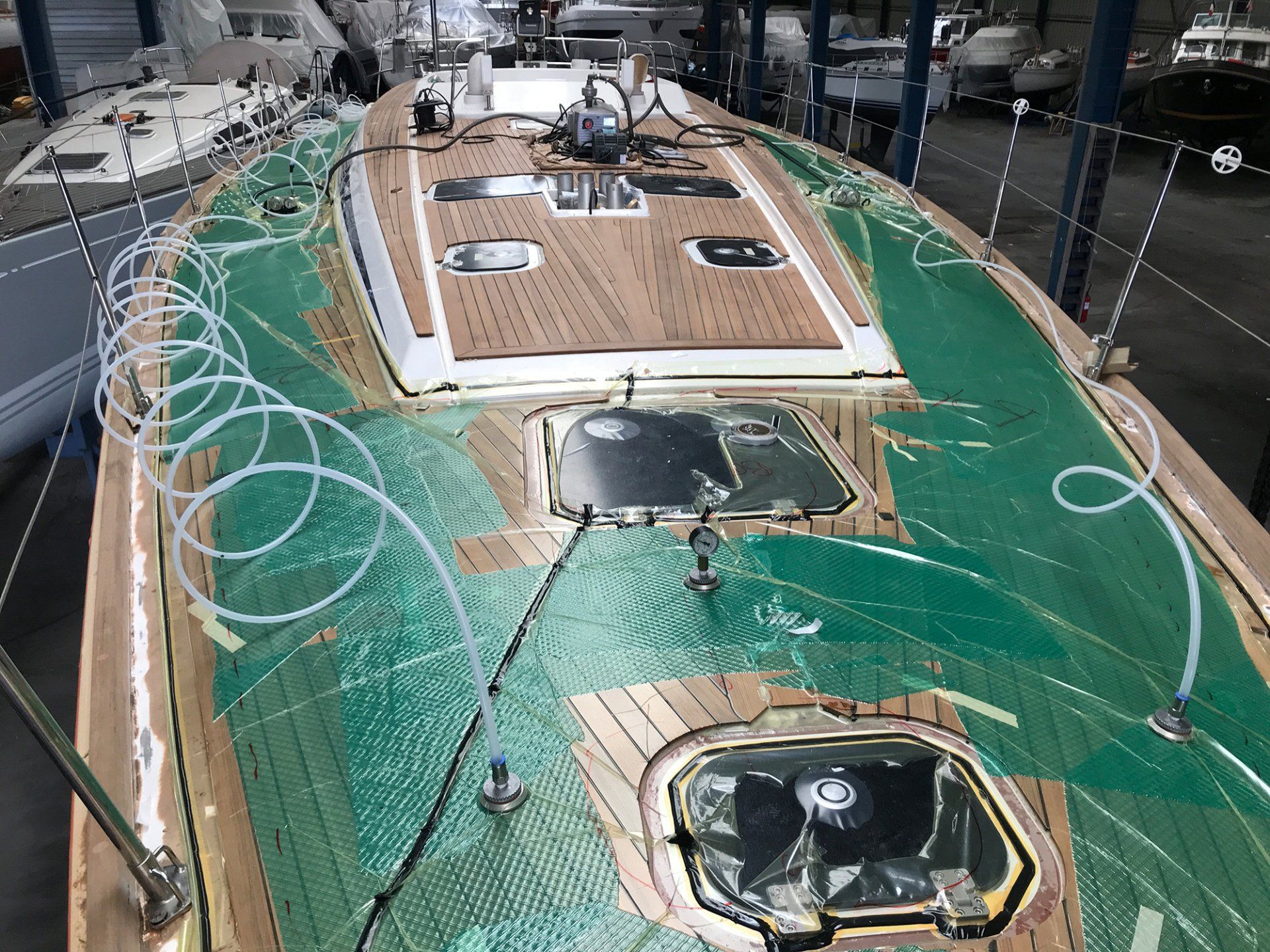

The new teak deck is installed using the vacuum method
Button
The exchange of a teak deck is a good opportunity to renew the deck equipment as well. The Swan 40 has received new goiot deck hatches and new teak hatch frames.
Button
All fittings and deck hatches are carefully sealed.
Button
The deck equipment of the Swan 40, here the mast garden, is reassembled after vacuum bonding the new teak deck.
Button
In addition to the new vacuum-bonded teak deck, the Swan 40 also gets a new step for the pulpit.
Button

Would you like to have teak deck work carried out on your yacht?

REQUEST A QUOTE

Back to projects overview

5 steps to your new teak deck

Here's what happens after your enquiry

Your enquiry

So that we can advise you in the best possible way on your enquiry and provide you with a customised offer, we need the following information:

Boat type

Year of construction

Berthing location

Pictures of the current deck

If possible: the deck plan or a rough sketch of the deck areas

Your contact information

Send us your enquiry via the contact form on this website or by e-mail to info@mobilerbootsbau.de.

Our quote

You will receive a customised offer from us. To help you plan better, we offer our teak decks at fixed prices.

Measuring & templating your boat deck

We come to you on board and create three-dimensional templates from the deck surfaces. Depending on the application with one of our digital measuring systems or by hand from thin, warp-free plywood.

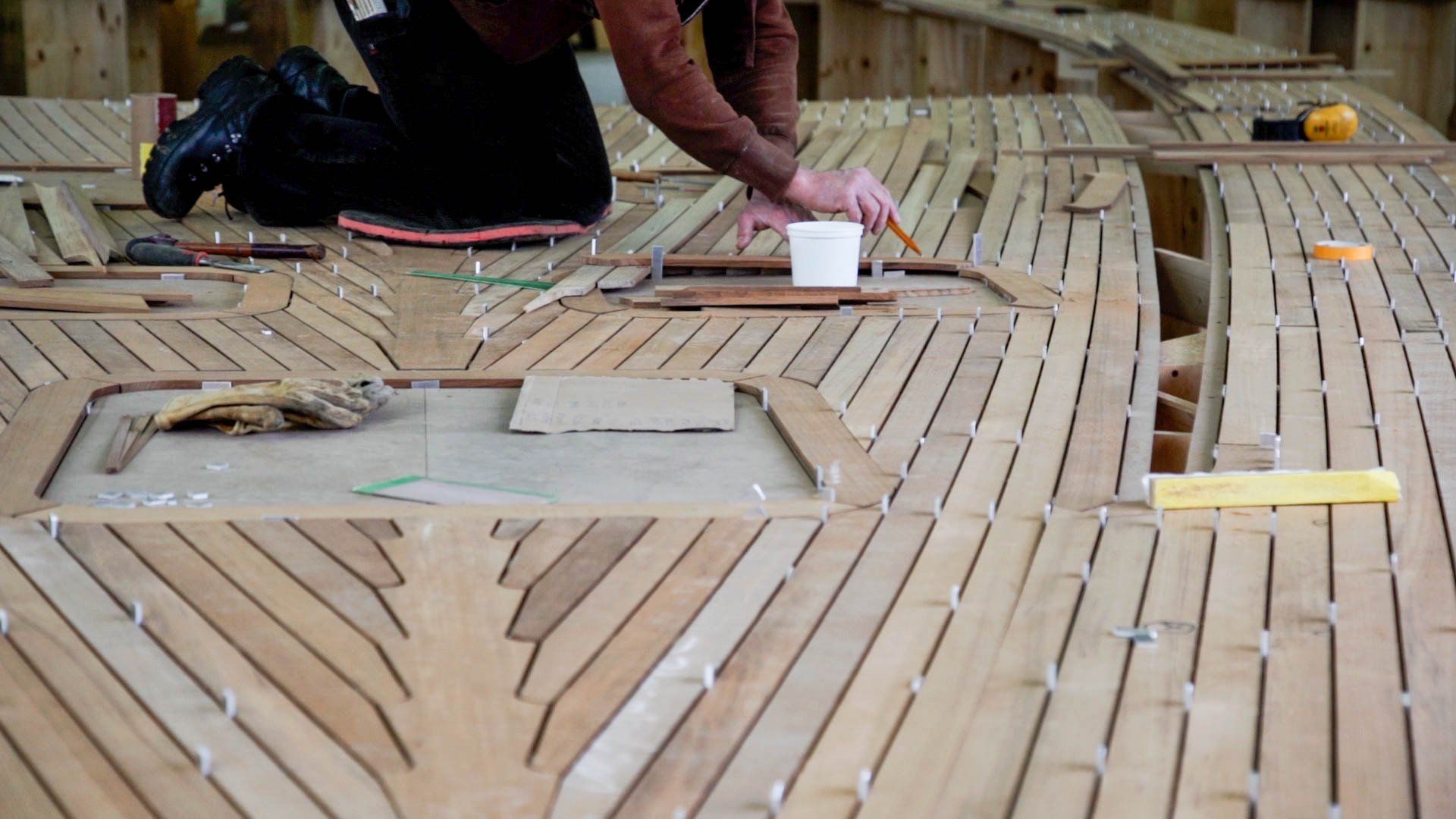

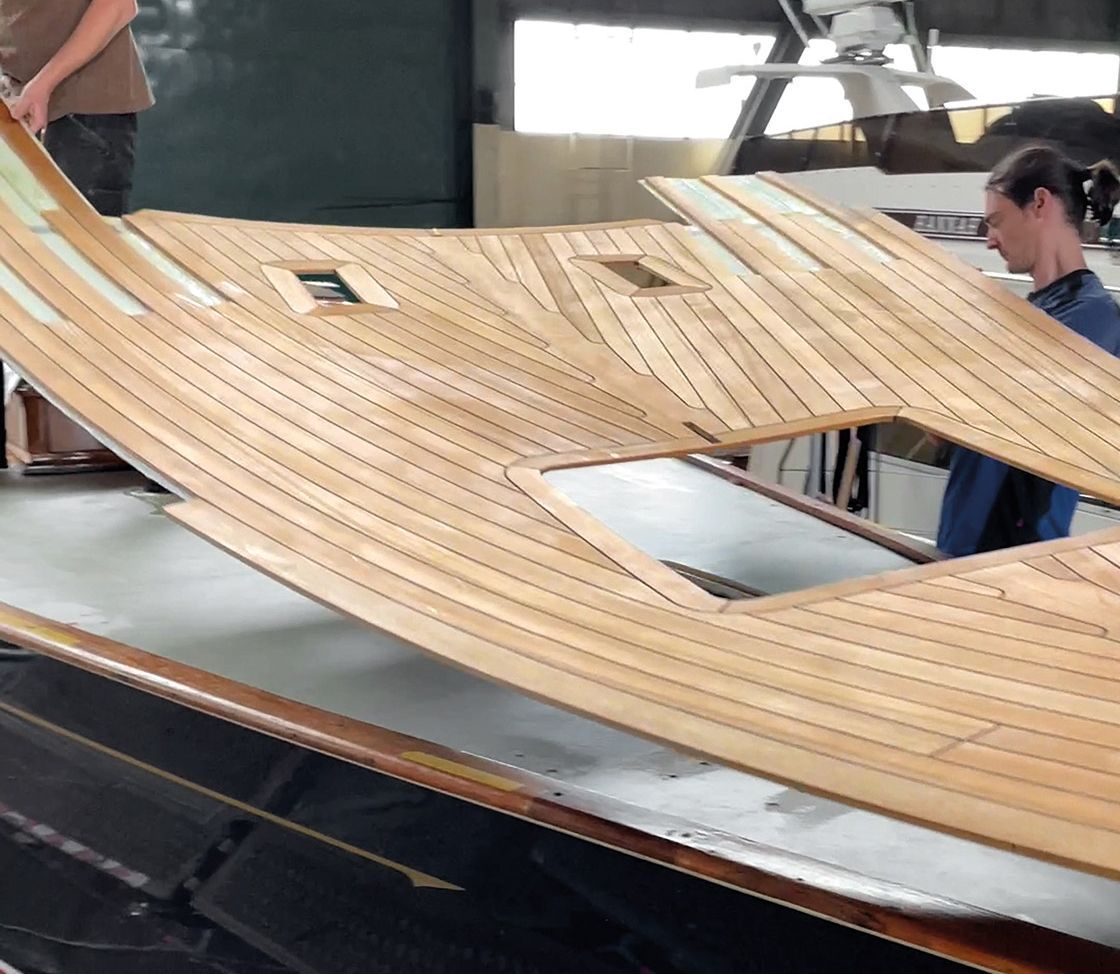

Production of the teak deck

We then manufacture your teak deck in our production facility. A deck for a 45ft yacht has a construction time of approx. 3 weeks.

Installation

We come to you with the finished deck - Europe-wide. Usually, the old teak deck is removed, the boat deck structure is refurbished and the new deck is installed using the vacuum bonding method. Your boat is ready for use again after only a short installation time!
